Ring Roller Mill

Ring Roller Mill

The non-metallic mineral grinding ring roller mill pulverizes non-metallic minerals into fine powder. It is designed and developed based on many years of research and experience in grinding mill production.

Working Principle

The ring roller mill uses the principles of impact, extrusion and grinding to crush materials. There are multiple layers of grinding rollers and grinding rings installed, and the material first falls between the uppermost grinding rollers and grinding rings. There is a large movable gap between the grinding roller installed on the grinding roller bracket and the pin shaft. When the material passes through the gap between the grinding roller and the grinding ring, the material will be crushed by the impact, extrusion and grinding of the grinding roller. When the material passes through the multi-layer grinding rollers and grinding rings from top to bottom, the material will be ground many times. Under the action of gravity, the crushed material falls to the bulk material tray at the bottom and is thrown to the airflow channel, and is brought into the classification area at the top by the airflow; the classifying wheel classifies the powder, and the qualified fine powder passes through the classifying wheel and enters the The dust collection system collects, and the coarse material is thrown to the inner wall of the diversion ring, and falls back into the crushing area for crushing.

roller-mill-2

Features And Benefits

  • Large output, more than twice the production efficiency of Raymond mills and jet mills, good product fineness indicators, easy installation of complete sets of equipment, no large-scale civil engineering, all fine powder can be recycled, no pollution to the environment, and the dust removal effect reaches the dust industry Emission Standards;
  • Widely used in calcium carbonate (calcite, marble, limestone, chalk), barite, kaolin, dolomite, magnesite, alumina, ultrafine cement, slag, steel slag and other industries;
  • Favorable product granularity and stability,Ideal equipment for current dry grinding method to produce non-metallic mineral fine powder such as calcium carbonate.
  • Particle sizes can be adjusted as needed.Could produce powder of D97: 3-8μm, and also produce ordinary powder of D97: 10-40μm.
  • Can be used in series with multi-stage classifiers to produce products with multiple sizes at one time.
  • Particle size range: D50: 1.5~45μm.

Technical Parameters

MODEL SRM800 SRM1000 SRM1250 SRM1680
Feed Size (mm) < 10 - 20 < 10 - 20 < 10 - 20 < 10 - 20
Moisture (%) < 5% < 5% < 5% < 5%
Mill Motor (kw) 75 132 185 315
Classifier Motor (kw) 15 - 18.5 22 - 30 37 - 60 55 - 92.5
Fan Motor (kw) 37 - 45 55 - 75 75 - 110 132 - 180
Product Fineness (mesh) 325 - 2500 325 - 2500 325 - 2500 325 - 2500
Production Capacity (T) 0. 5 - 4.0 1.0 - 8.0 2.0 - 12 3.0 - 20

Project Cases

Milk powder grinding production line of a company in Menggu This customer is a well-known milk enterprise in China. During the launch of their freeze-dried ...
Read More →
A ball milling and modification production line in a calcium carbonate factory in Iran This customer, a prominent non-metallic ore processing enterprise in Iran, sought ...
Read More →
Air Classifying production line of carbon microspheres in a chemical plant in Hubei In recent years, the new energy industry has developed rapidly. This customer ...
Read More →
Silica soil drying and dispersing modification production line of a mineral products company in Jiangsu This mineral company has the mining right. Also the mineral ...
Read More →

Related Posts

The size of particles is called “grain size” .It is also known as “particle size” or “diameter.” When a particle’s physical behavior matches that of ...
Read More →
Rare earth long afterglow phosphor
When taking the subway, people sometimes get lost. In subway stations, glowing exit signs are everywhere. What are these glowing materials made of? Research shows ...
Read More →
pigment
Fine Grinding Mill for pigment powders is a key process for improving pigment dispersion, tinting strength, and stability. Particle size is one of the important ...
Read More →
ultrafine grinding
Ultrafine grinding technology has emerged in recent years alongside the rapid development of modern chemical, electronic, biological, material, and mineral technologies. It is a cutting-edge, ...
Read More →

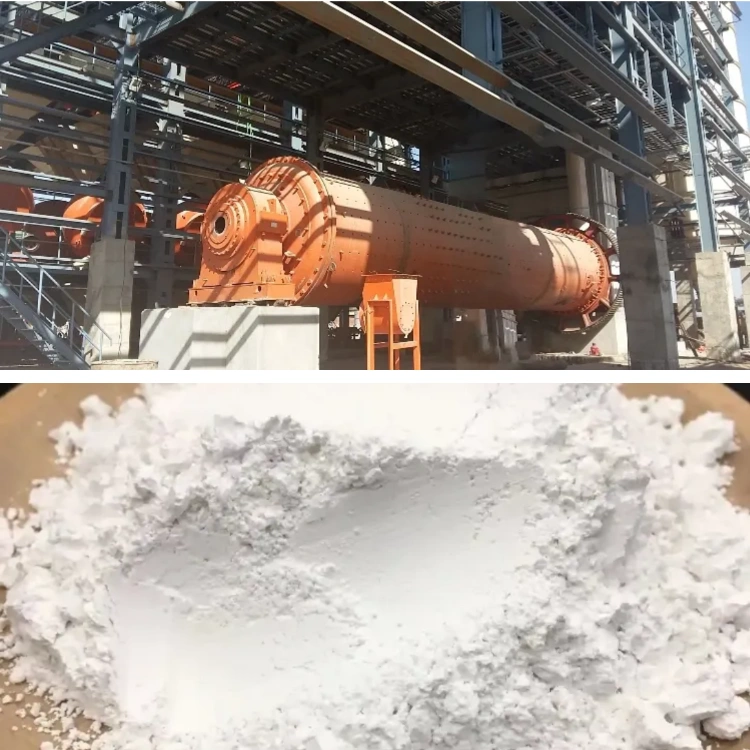

ball milling classifier product line
